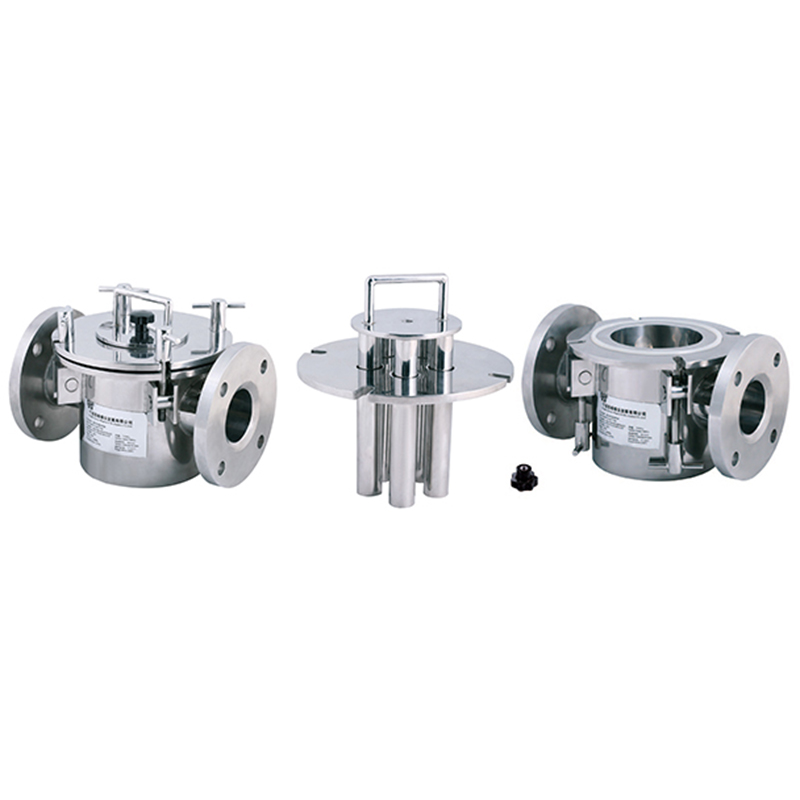

Magnetic Liquid Separator

Pipeline magnetic separators are key devices specifically designed for industrial pipeline systems, efficiently removing ferromagnetic impurities from fluids. They are widely used in numerous industries, including chemical, food, plastics, ceramics, power, and mining.

  Working Principle

It operates based on the principle of strong magnetic field adsorption. The equipment is equipped with a high-performance permanent magnet core. When iron-containing fluid flows through the pipeline magnetic separator, under the influence of the magnetic field, ferromagnetic particles are rapidly adsorbed onto the magnetic pole surface of the separator, allowing the clean fluid to be continuously transported downstream. This achieves immediate purification of the fluid material, preventing wear, blockages, and product quality defects caused by iron impurities in subsequent production processes.

Superior Performance

Strong Iron Removal Capacity: Designed to withstand temperatures from 80℃ to 350℃, with a surface magnetic field reaching up to 15000GS. Possessing a high-gradient, high-strength magnetic field, even extremely fine iron filings and rust particles cannot escape its adsorption "net," effectively ensuring the purity of the materials.

Adaptable to Multiple Pipe Diameters:Offers a wide range of specifications to match industrial pipelines of varying diameters, flexibly integrating into existing production layouts.

Wear and Corrosion Resistant: The outer shell is made of high-quality stainless steel, resisting both fluid erosion and friction, and withstanding corrosive media such as acids and alkalis, ensuring a long service life.

Design Structure:

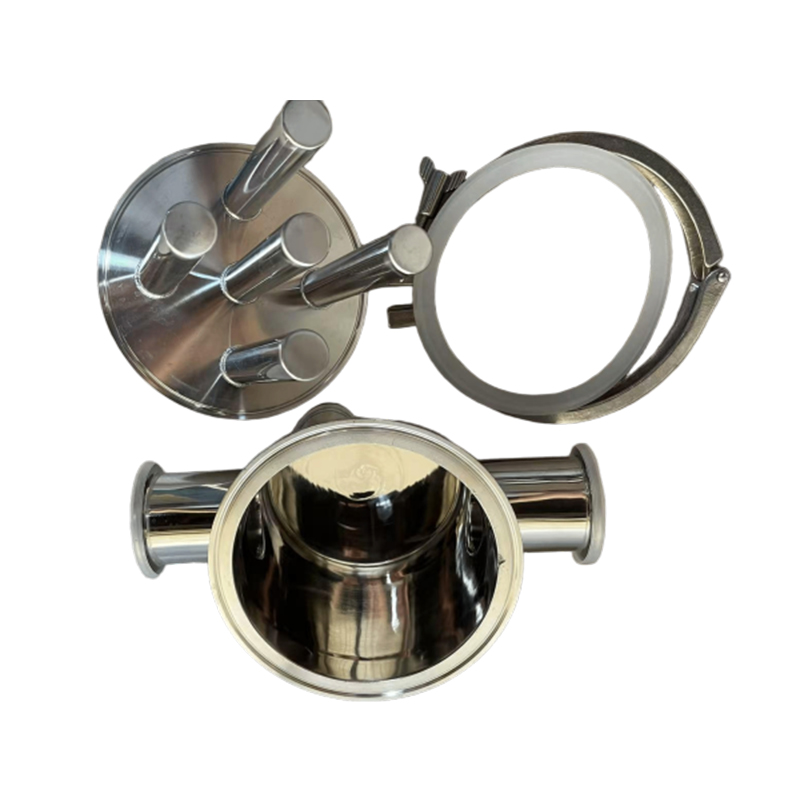

Easy Cleaning:The detachable design simplifies cleaning after adsorption saturation. Operators simply disassemble the equipment according to operating procedures to quickly clean iron impurities from the magnetic poles, then reassemble in situ to rapidly restore the equipment's iron removal efficiency. An easy-clean model is available for even faster impurity removal and shorter operation time.

Integrated Installation: The compact overall structure utilizes multiple convenient installation methods, including flange and threaded connections, allowing seamless integration with piping systems and saving installation space and time costs.

Safety and Energy Saving:

During operation, the pipeline iron separator requires no additional electricity to maintain the magnetic field, relying solely on the inherent magnetic force of the permanent magnets, significantly reducing long-term energy consumption costs. Furthermore, it eliminates safety hazards such as leakage and electromagnetic radiation, creating a safe and worry-free production environment for businesses. Whether it's for stringent control of raw material purity in fine chemicals or for ensuring product safety in the food processing industry, pipeline iron separators are an indispensable and ideal choice.
