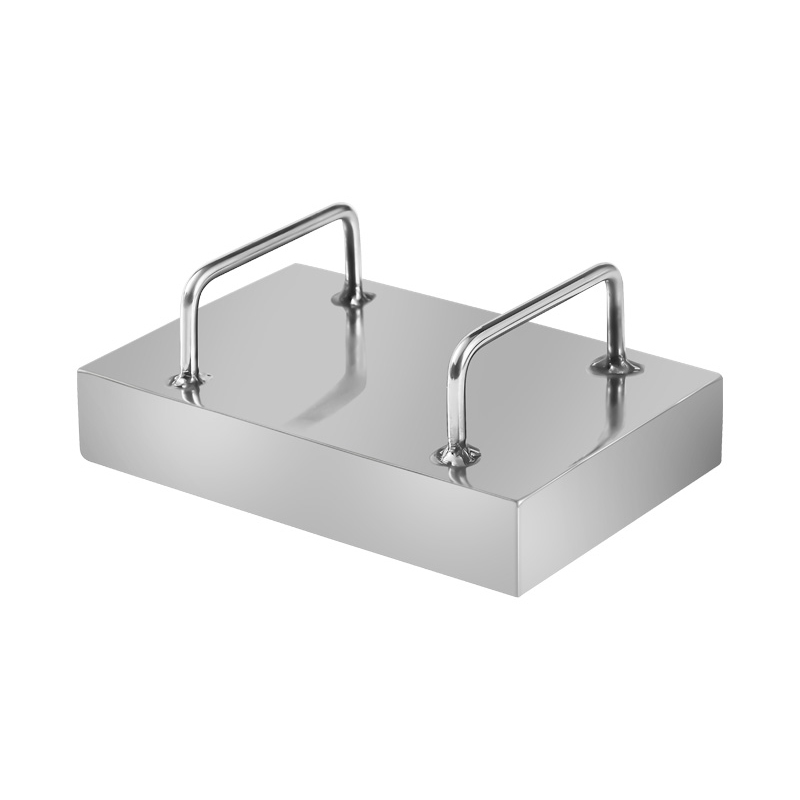

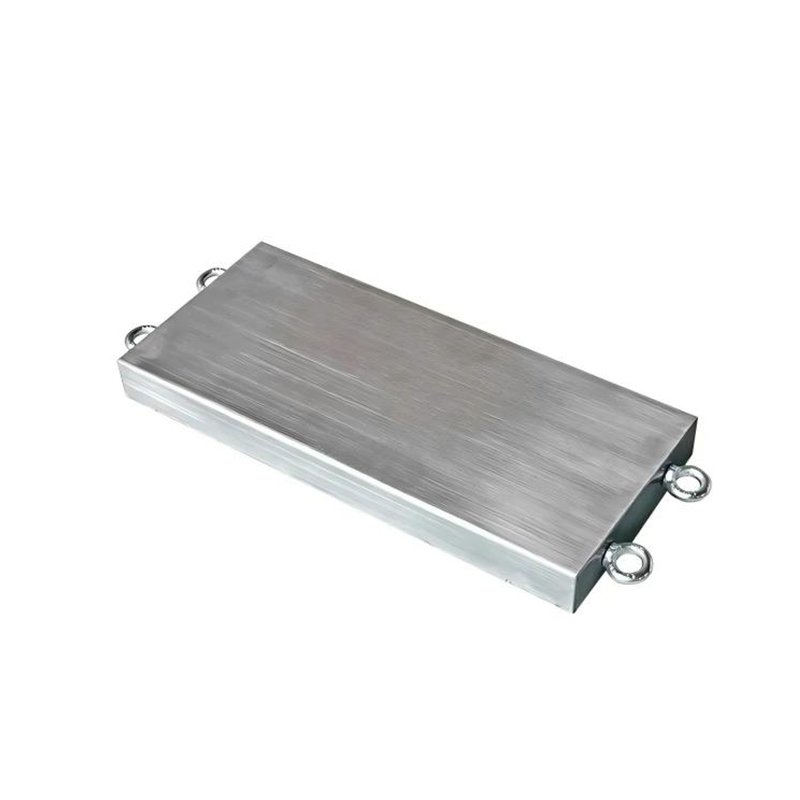

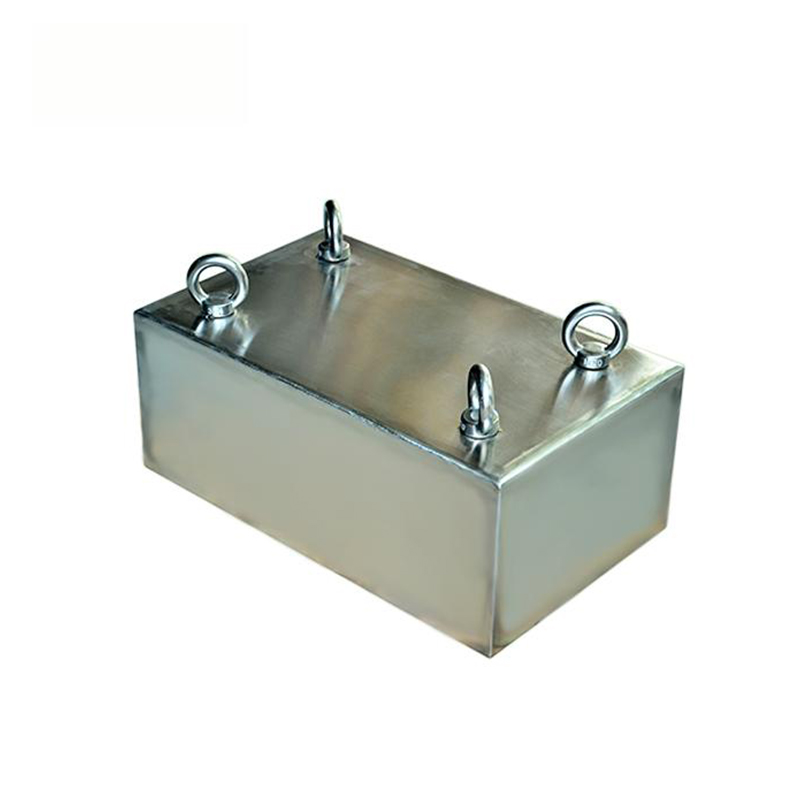

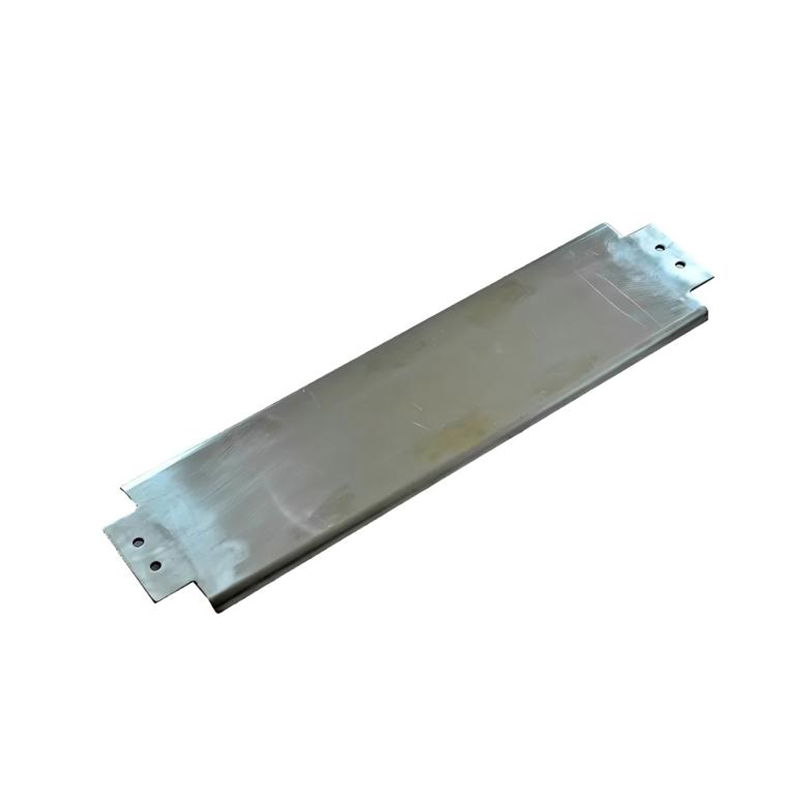

Magnetic Plate

Structure:
The magnetic plate uses rare-earth permanent magnets as the magnetic source, encased in high-quality 304 or 316L seamless stainless steel tubing, and sealed at both ends by welding.

Applications:

Magnetic plates are typically installed above flat or trough-shaped conveyor belts. When metal particles (iron) pass beneath the magnetic plate, they are drawn from the material flow and held by the magnets. Simultaneously, the magnetic plate causes minimal interference with material flow and conveying. Magnetic plates offer an economical, convenient, and practical solution for purifying materials and protecting downstream equipment such as crushers and pulverizers.

Magnetic plates are widely used in the food, pharmaceutical, chemical, tobacco, plastics, and wood processing industries.

Features:

1.Unique, optimized magnetic circuit design, high strength, strong tensile strength, secure folding, and effective separation.

2.Various styles are available, such as smooth flat surfaces, single-cone steps, and double-cone steps.

3.Customizable strength options.

4.Zero power consumption, simple installation, and easy cleaning.

5.Fully welded, waterproof casing. 6. Corrosion-resistant SUS304 or SUS316L housing.

6.Custom designs are available upon request and meet medical and health standards.
